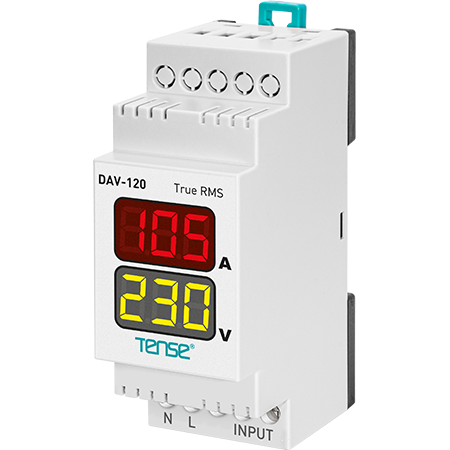

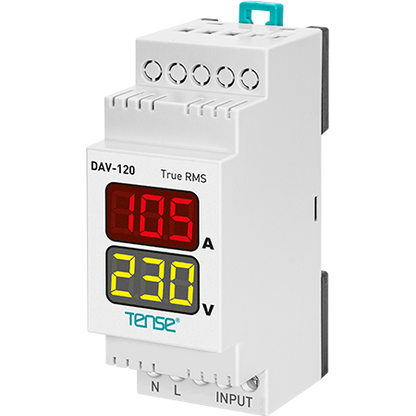

DAV-DIN digital ammeter and voltmeter 150-260V panel meters
- Regular price
- €49,00
- Regular price
-
- Sale price
- €49,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- User Manual
- Payment methods
- Warranty
Digitalni multimeter s tokovnim transformatorjem 100/250 A 150V - 260V AC - TENSE
Opis
Digitalni multimeter TENSE združuje ampermeter in voltmeter v eni napravi. Zasnovan je za neprekinjeno spremljanje izmeničnega toka, obremenitve in ustrezne fazne napetosti.
Instrument uporablja priloženi tokovni transformator 100/250 A 150V - 260V AC. . Vodnike tokovnega transformatorja priključite na vhodne sponke instrumenta. Instrument prilagodi prikazane vrednosti glede na priključen transformator - ne kombinirajte tokovnih transformatorjev različnih znamk in modelov.
Ko je instrument pod napetostjo, se na zaslonu prikaže:
-
tok, ki ga odjema breme
-
Napetost med fazo in nevtralnim poljem (priključena na sponki A1 in A2)
Merilno območje
| Meritve | Območje |
|---|---|
| Napetost | 150 - 260 V AC |
| Tok | 1 - 100 A |
Tehnične značilnosti
| Parameter | Vrednost |
|---|---|
| Delovna napetost (Un) | 140-270 V AC |
| Delovna frekvenca | 50/60 Hz |
| Poraba energije | <6 VA |
| Natančnost merjenja | ±1 % (V), ±3 % (A) |
| Delovna temperatura | -20 °C ... +55 °C |
| Vrsta priključka | Sponke |
| Prikazovalnik | 2 × 3 števke, višina 9 mm |
| Teža | 220 g |
| Namestitev | Tirnica DIN |
| Premer priključnega kabla | 2,5 mm² |
Prednosti
-
Kombinacija voltmetra in ampermetra v enem instrumentu
-
Neprekinjeno spremljanje izmeničnega toka in napetosti
-
Enostavna montaža na DIN letev
-
Natančno merjenje zaradi priloženega tokovnega transformatorja
-
Kompaktna in lahka zasnova
