Digital relay TRM-12 - 3-phase, 0.1-25 A, LED display, timer

Product description

TENSE TRM-12 digital thermal relays are designed for protecting loads from damage due to high currents.
They allow setting overcurrent, fault delay time, and operating mode.

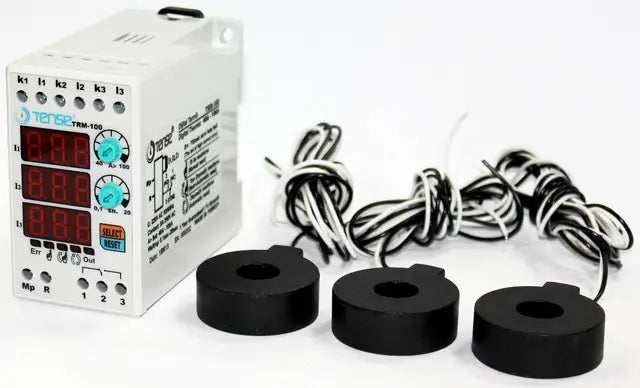

They have internal current transformers and a 3 × 3-digit LED display for clear operation monitoring.

Main features

• Adjustable overcurrent value: 0.1-25 A

• Fixed current asymmetry: 50%

• Adjustable fault delay time: 0.1-20 s

• Operating modes: Manual, semi-automatic, automatic

• Three-phase operation with built-in current transformers

• LED status indication: OUT, ERR

• Display range: 3 × 3 digits + 5 LEDs

Operating principle

• When power is connected, the relay switches on and activates the output contact, the OUT indicator lights up.

• When the set overcurrent value is exceeded, the delay time starts counting down and the ERR indicator lights up.

• When the time expires, the relay switches off, the output contact switches, and the OUT indicator turns off.

• The relay resets automatically or manually, depending on the selected mode:

  • Manual: manual reset required after a fault.

  • Semi-automatic: three automatic resets, then manual reset.

  • Automatic: automatic reset on every fault.

50 percent asymmetry

• If the difference between the maximum and minimum phase current exceeds 50%, the relay enters asymmetry fault mode.

• Error indicated by flashing displays and ERR indicator.

• Manual reset required for return.

• Current below 2 A is not monitored.

Technical parameters

• Supply voltage: 150-260 V AC, 50/60 Hz

• Power consumption: < 6 VA

• Operating temperature: from -20 °C to +55 °C

• Display: 3 × 3 digits, 5 LEDs

• Overcurrent setting: 0.1-25 A

• Delay time: 0.1-20 s

• Connection type: terminal

• Output contacts: 5 A / 250 V AC

• Wire diameter: 2.5 mm²

• Installation: DIN rail

• Weight: max 250 g

• Altitude: < 2000 m

Application

• Automatic device shutdown when maximum current is exceeded

• Protection of motors, heaters, transformers, and other three-phase equipment

• Preventing equipment damage during unbalanced phase load
