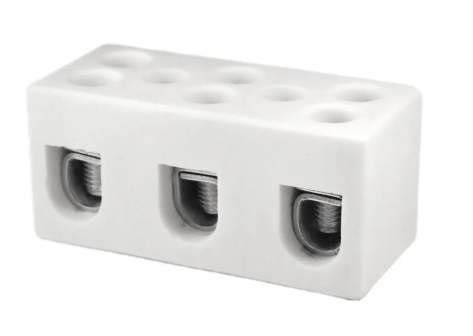

Steatite ceramic clamp, ONKA
The ONKA high-temperature ceramic terminal blocks are designed for reliable electrical connections under extreme temperature conditions. The clamp housing is made of steatite, providing excellent insulation properties and resistance to temperatures up to 1100 °C. Contacts made of high-quality CK45 steel ensure a firm and stable screw connection of conductors. The product is ideal for use in heating systems, furnaces, and industrial equipment with high thermal loads.
Technical parameters
Number of poles: 3
Insulating material: steatite (ceramic)
Contact material: CK45 steel
Type of connection.
Maximum operating temperature: 1100 °C
Standard: EN-60998-2-1
Dimensions:
Length (A): 65.6 mm
Width (B): 30.0 mm
Height (C): 30.0 mm
Wire hole diameter (DØ): 6.7 mm
Mounting hole diameter (MØ): 5.2 mm
