ONKA current transformer - current transformer 600/5A, 60 mm, class 0.5S, 5VA (TK606005304 / 80011767)
- Regular price
- €27,21 €22,30 excl. VAT
- Regular price
-
- Sale price
- €27,21 €22,30 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty

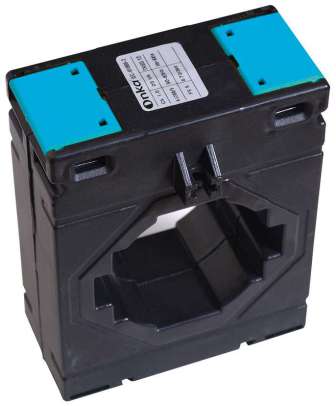

Sliding measuring transformer for primary rated currents of 600 A, secondary current 5 A, rated output power 5 VA, available in accuracy class 0.5S, ONKA.
ONKA TK606005304 is a plug-in/window current transformer designed for indirect measurement of sinusoidal alternating current in power supply and measuring systems. It is suitable for switchgear in residential and commercial premises as well as light industry.
Technical parameters
| Parameter | Value |
|---|---|
| Primary rated current | 600 A |
| Secondary current | 5 A |

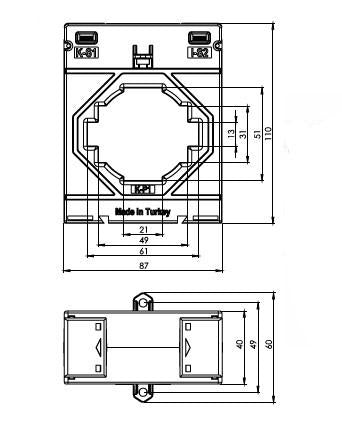

| Mounting diameter / inner collector | Ø 60 mm |
| Rated power (secondary load) | 5 VA |
| Accuracy class | 0.5S |
| Mounting type | Window / sliding, mounting feet included |
Product description
The transformer converts primary current up to 600 A into a standard secondary current of 5 A, enabling safe and convenient connection:
-
Meters and ammeters
-
protection and automation systems
-
control and measuring equipment
Installation is done by sliding onto the rail, and thanks to the included mounting feet, there is no need to interrupt the main circuit. The compact design also allows installation in cabinets with limited space.
Advantages
-
Handles current up to 600 A - suitable for medium loads
-
Standard output 5 A - compatible with most measuring and control equipment
-
Accuracy class 0.5S - reliable and precise measurements, suitable for measurement and control
-
Compact size (60 mm rail) - suitable for cabinets with limited space
-
Easy installation - mounting housing + mounting feet, no interruption of the main circuit
-
Stability and compatibility - suitable for continuous current monitoring and measurement systems
Recommended use
-
Distributors in residential, commercial, and light industrial devices
-
Electricity measurement systems, load monitoring, and protective control
-
Connection of meters, ammeters, and automation systems requiring a stable output signal
