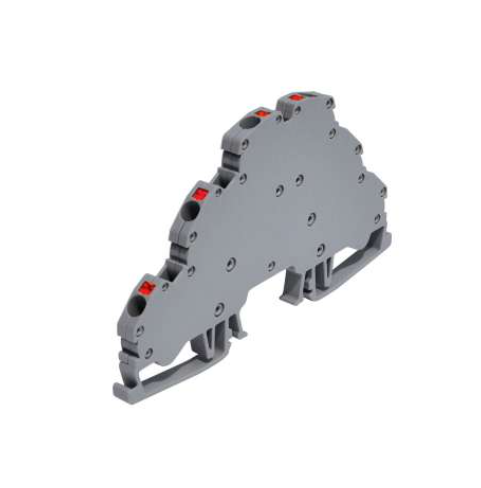

OPK 3 Line clamp for three pairs 2.5 mm²

Three-level screwless clamp for DIN rail, gray, ONKA

ONKA multiple terminal blocks provide a space-saving solution for reliable electrical and mechanical connections in limited distribution box spaces. The three-level design allows connection of multiple independent circuits stacked one above the other while maintaining the minimum DIN rail width of 35 mm. Original ONKA terminals ensure high ease of installation, reliable wire fastening, and long-term connection stability even in harsh industrial conditions.

Technical parameters

• Construction.

• Color: gray

• Rated cross-section (IEC): 2.5 mm²

• Rated current (IEC): 24 A

• Rated voltage (IEC): 750 V

• Insulating body material: Insulating material: polyamide (PA 6.6)

• Bridge material: copper

• Spring material: stainless steel

• Control button material: polyamide (PA 6.6), orange color

• Operating temperature range: from -40 °C to +140 °C

• Wire stripping length: 9 mm

• Mounting method: DIN 35 mm mounting rail

• Standard: EN-60947-7-1

• Certification: TSE, CE

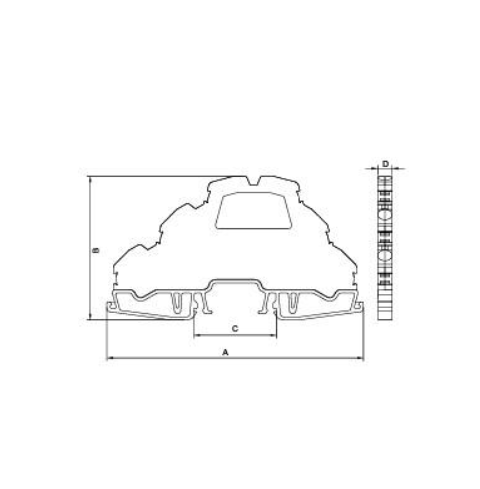

Dimensions

• Dimension A: 106.0 mm

• Dimension B: 60.0 mm

• Dimension C: 34.5 mm

• Dimension D (clamp width): 5.9 mm
