PDB407 phase separation terminal block
- Regular price
- €13,16 €10,79 excl. VAT
- Regular price
-
- Sale price
- €13,16 €10,79 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty

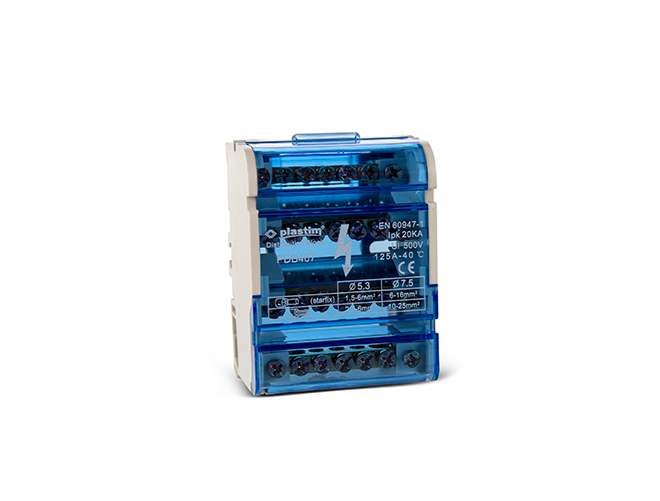

Phase separation terminal unit on DIN rail, Plastim, made in Turkey.
The Plastim four-pole distribution block is used for safe, structured, and space-saving branching of three phases and a neutral conductor (3P+N) in electrical distribution panels. The assembly contains four separate, galvanically isolated brass busbars (4 poles), each with 7 connection points of two different diameters for reliable fastening of main supply and output circuits. The transparent hinged protective cover allows immediate visual inspection of connection status while providing safe protection against accidental contact. The block is designed for quick mounting on a standard DIN 35 mm mounting rail or for screw mounting on a mounting plate.
Technical parameters
Product type.
Number of poles: 4 (ideal for three-phase systems with neutral conductor)
Rated current: 125 A
Number of connections per pole: 7
Total number of connections: 28 (4 × 7)
Pole connection configuration: 5× ø 5.3 mm + 2× ø 7.5 mm
Type of connection: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 65.0 mm
Width: 89.5 mm
Height: 50.0 mm
