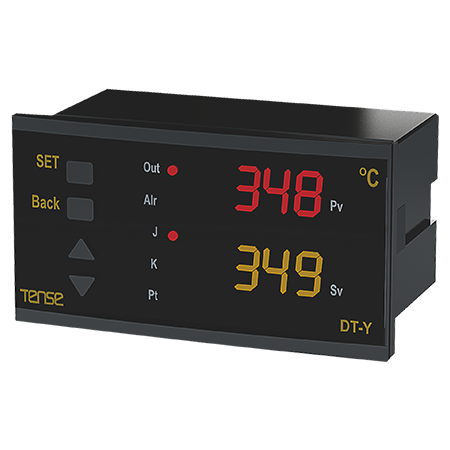

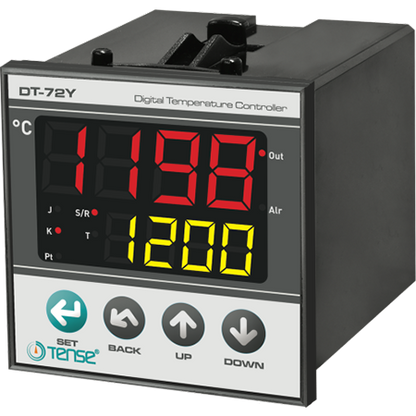

PID temperature regulator for panel mounting up to 1750 °C

PID temperature controller for panel mounting, measuring range -100 °C ... +1750 °C, resolution / step 0.1ºC (made in Turkey, TENSE)

Monitoring and supervision of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial equipment.

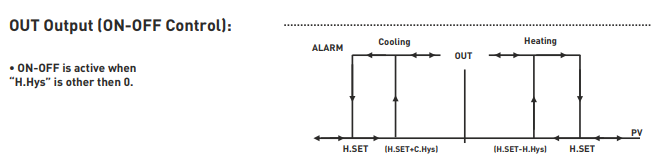

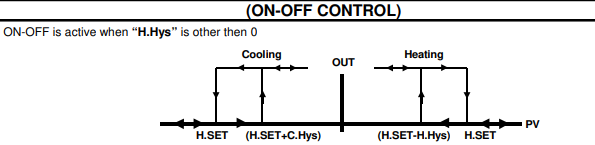

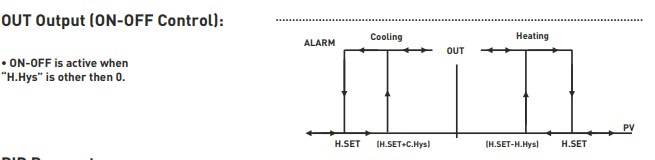

The temperature controller operates with on/off or PID control. The controller allows for self-optimization to prevent process overshoot.

• Automatic PID parameter tuning

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID, or ON-OFF.

• Automatic removal of 'excess' in PID mode

• Anti-winding

• Delay on for OUT in cooling mode

• Password protection

• EEPROM memory for storing settings

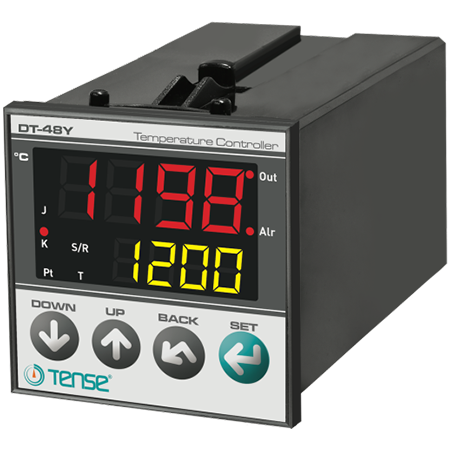

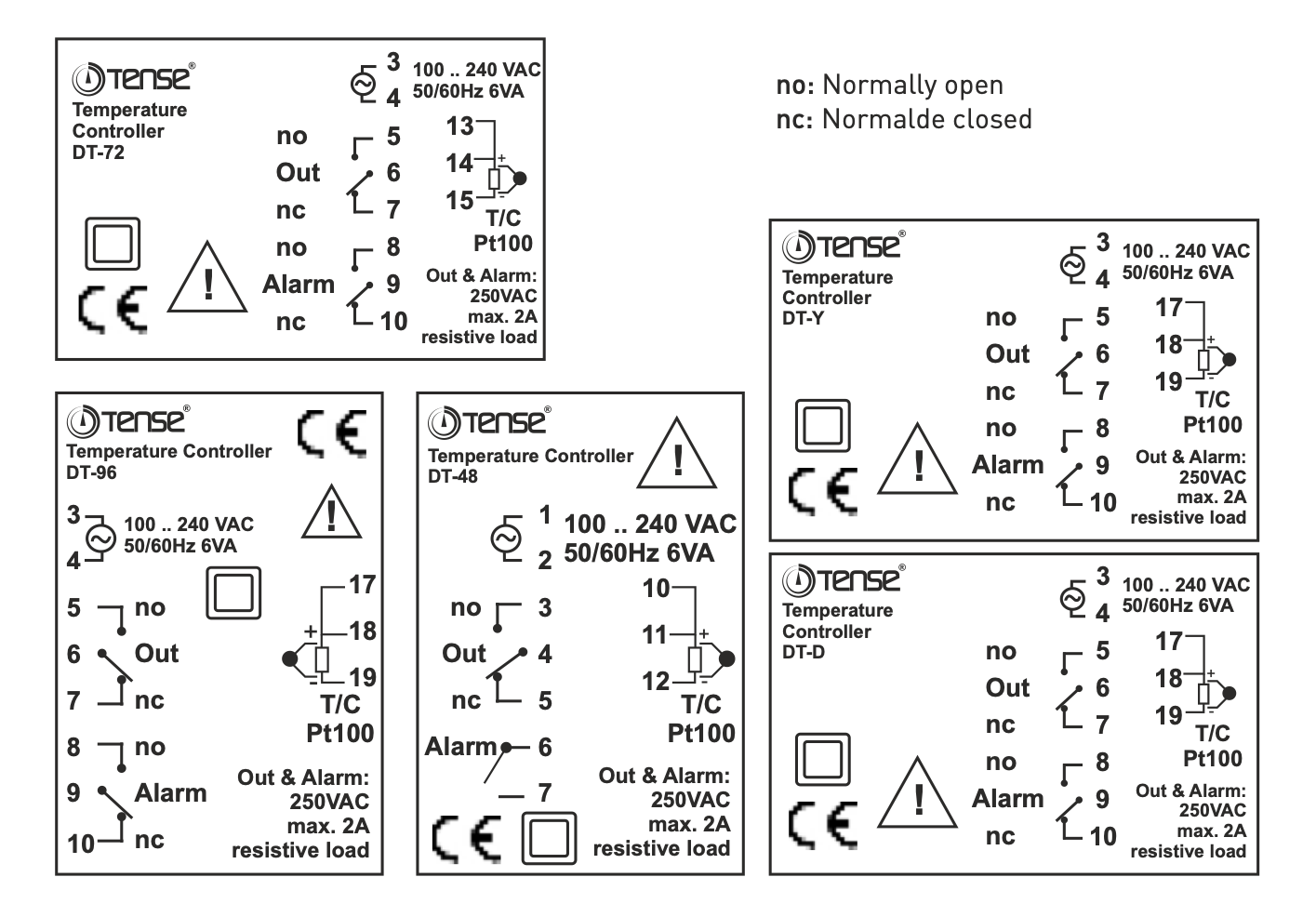

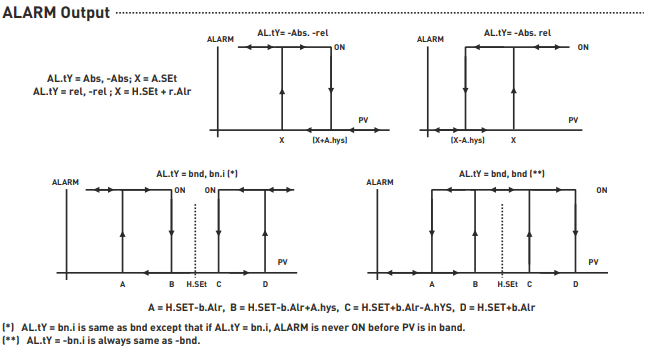

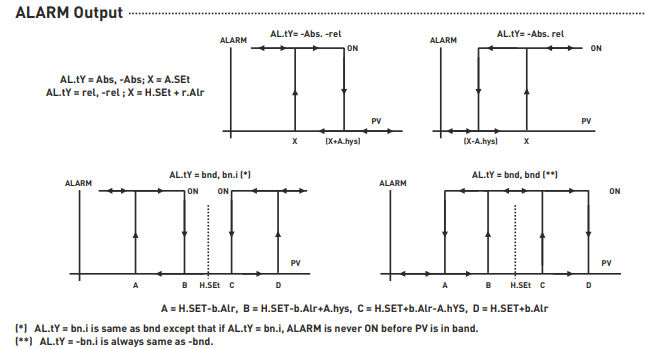

• Relay outputs OUT and ALARM (NO+NC) 250 VAC, 2A (ALARM activated only at DT-48Y)

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

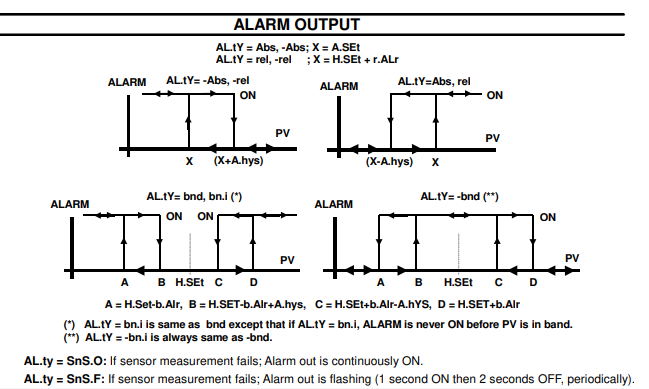

The display on the temperature controller is a high-contrast display that can be accurately read only in adverse conditions. In addition to the control output, the temperature controller has an additional alarm relay that activates a potential-free contact in case of exceeding or not reaching the values.

Don't forget to order our temperature sensors - thermocouples Fe-Const type J (metric 6/8) with a measuring range from -100 °C to +600 °C. Available with cable lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
