OPK series - Triggered spring test clamps
- Regular price
- €2,35 €1,93 excl. VAT
- Regular price
-
- Sale price
- €2,35 €1,93 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty

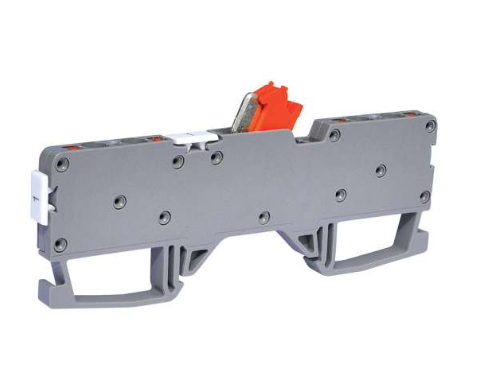

Screwless clamp for DIN rail, gray, ONKA
ONKA compact terminal blocks provide reliable electrical and mechanical connections in switch cabinets. They are designed for mounting on a standard 35 mm DIN rail. Original ONKA terminals offer high convenience during installation, secure wire fastening, and long-lasting connection stability even in harsh industrial conditions.
Technical parameters
Color: gray
Rated cross-section: 2.5 mm²
Rated current: 24 A
Rated voltage: 750 V
Insulating body material: Material: polyamide (PA 6.6)
Bridge material: copper
Spring material: stainless steel
Operating button material: polyamide (PA 6.6), orange color
Operating temperature range: from -40 °C to +140 °C
Wire stripping length: 9 mm
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
Certification: TSE, CE

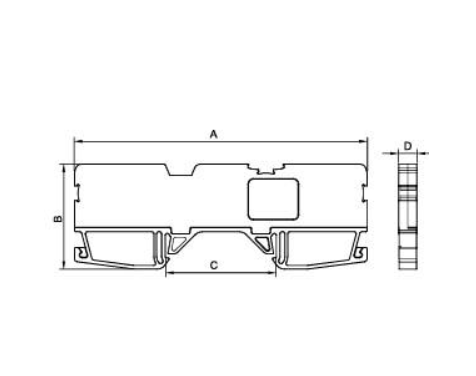

Dimensions
Width (A): 91.8 mm
Height (B): 33.0 mm
Height (C): 34.5 mm
Thickness (D): 5.9 mm
