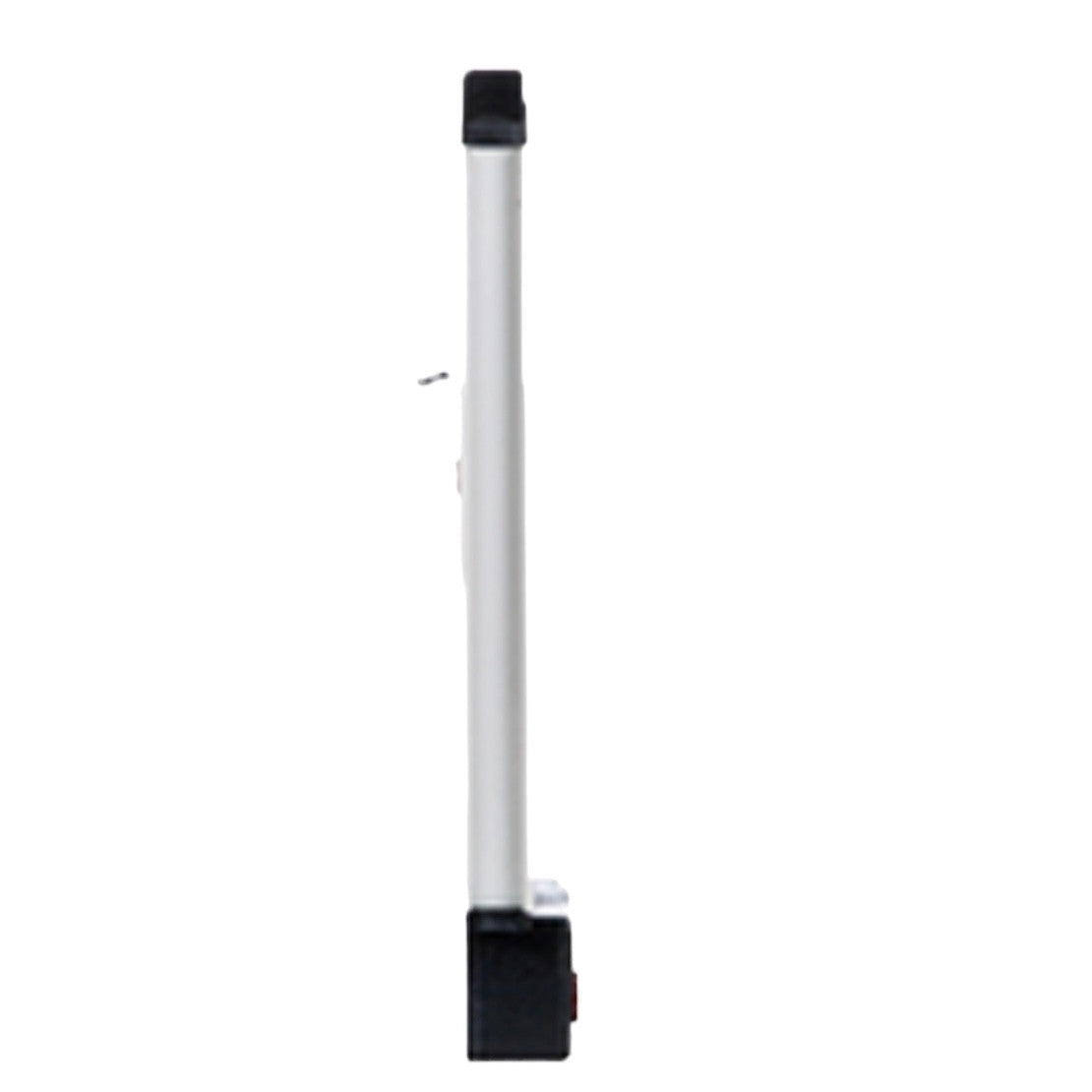

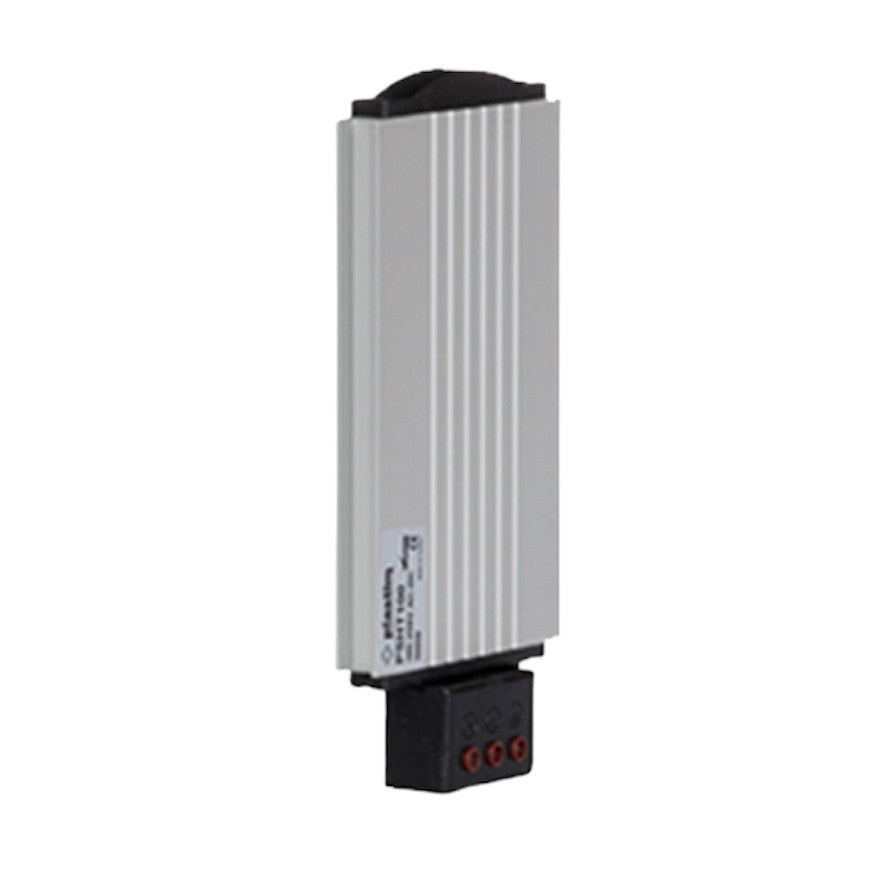

Slim PTC 30W heater for switchboards, PSHT030, Plastim

Thin electric (PTC Body heater, post-tension heater) heater for switchboards with anodized aluminum radiator and overcurrent protection, for DIN rail mounting, 30 W, 110-220 V AC or DC, PSHT030, Plastim - made in Turkey.

• Heating power: 30 W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 2A
• PTC self-regulating resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pin NLE connector
• IEC protection class: Class II
• Protection level: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat storage tank: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Mounting position: 35 mm, 35 mm, 35 mm, 35 mm, 35 mm, 35 mm: Highest efficiency in vertical position

• External dimensions: 148x80x27 mm

• Weight: 0.19 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automatic cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which provide not only heating, but also safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high requirements for housing heaters, Plastim paid the greatest attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER on a special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit odors and, therefore, does not emit harmful carcinogens into the atmosphere. Agree that such an approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance for this heater, you will need a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website:
