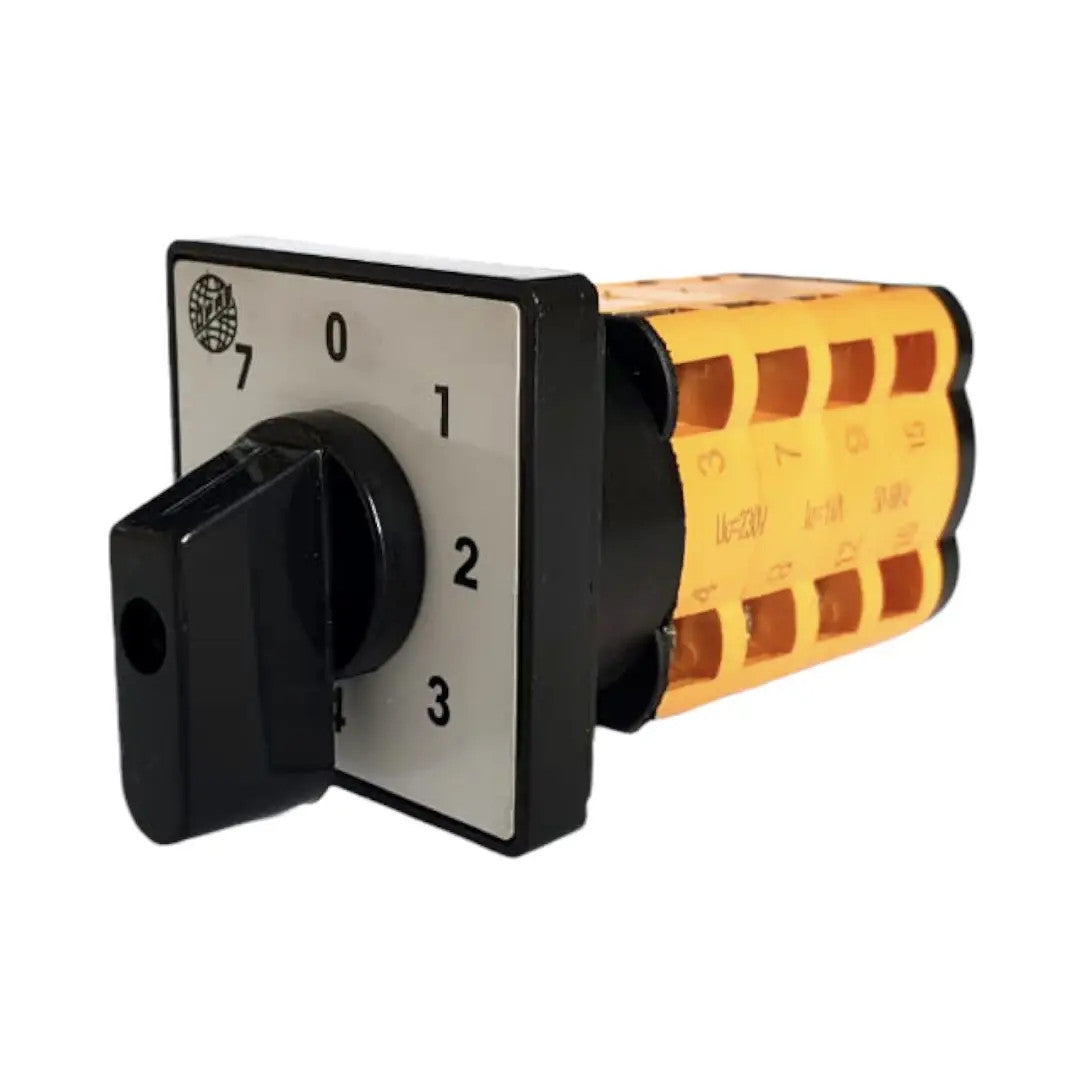

Temperature switch 0-1-2-3-4-5-6-7 temperature rotary switch, 1 pole, 10-160A

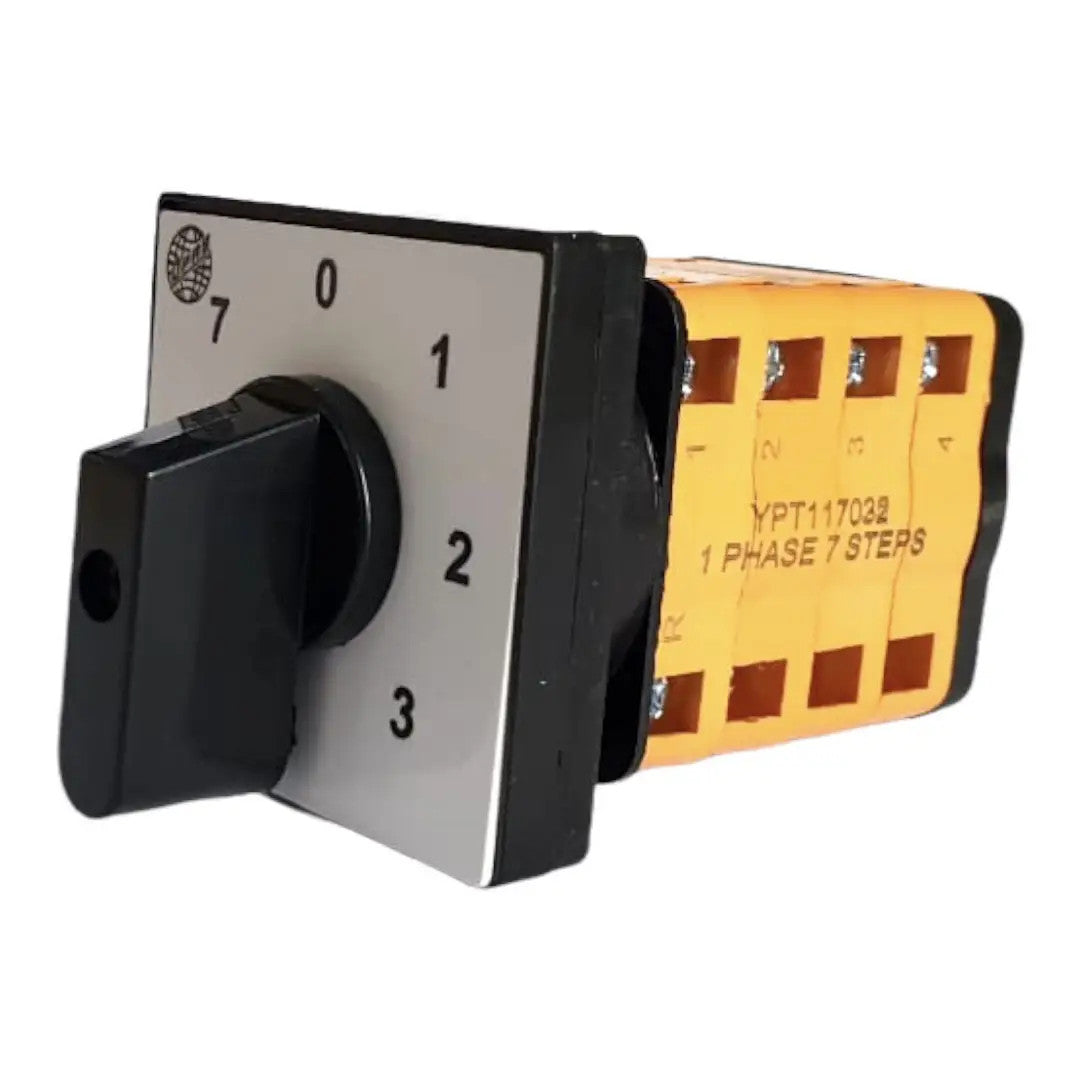

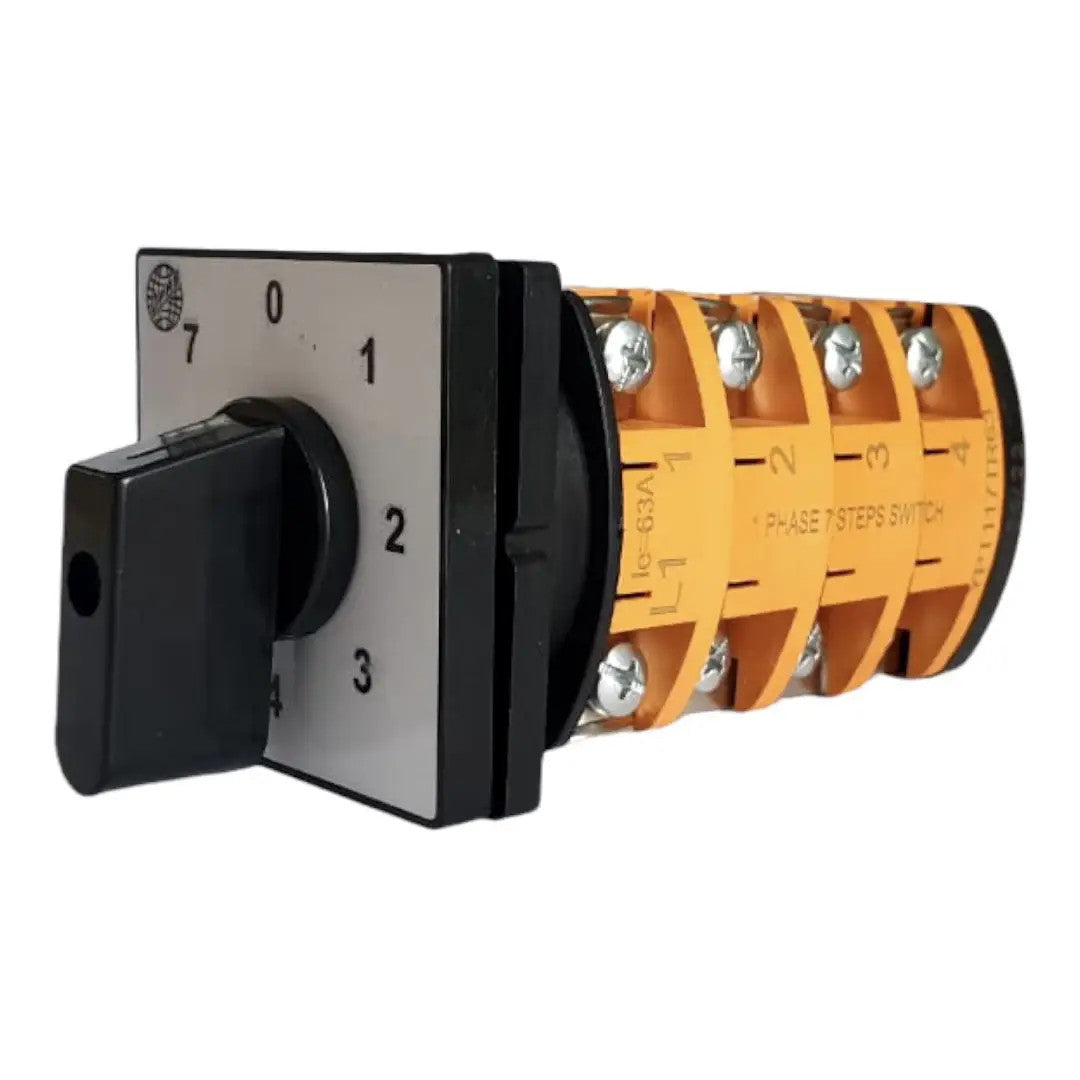

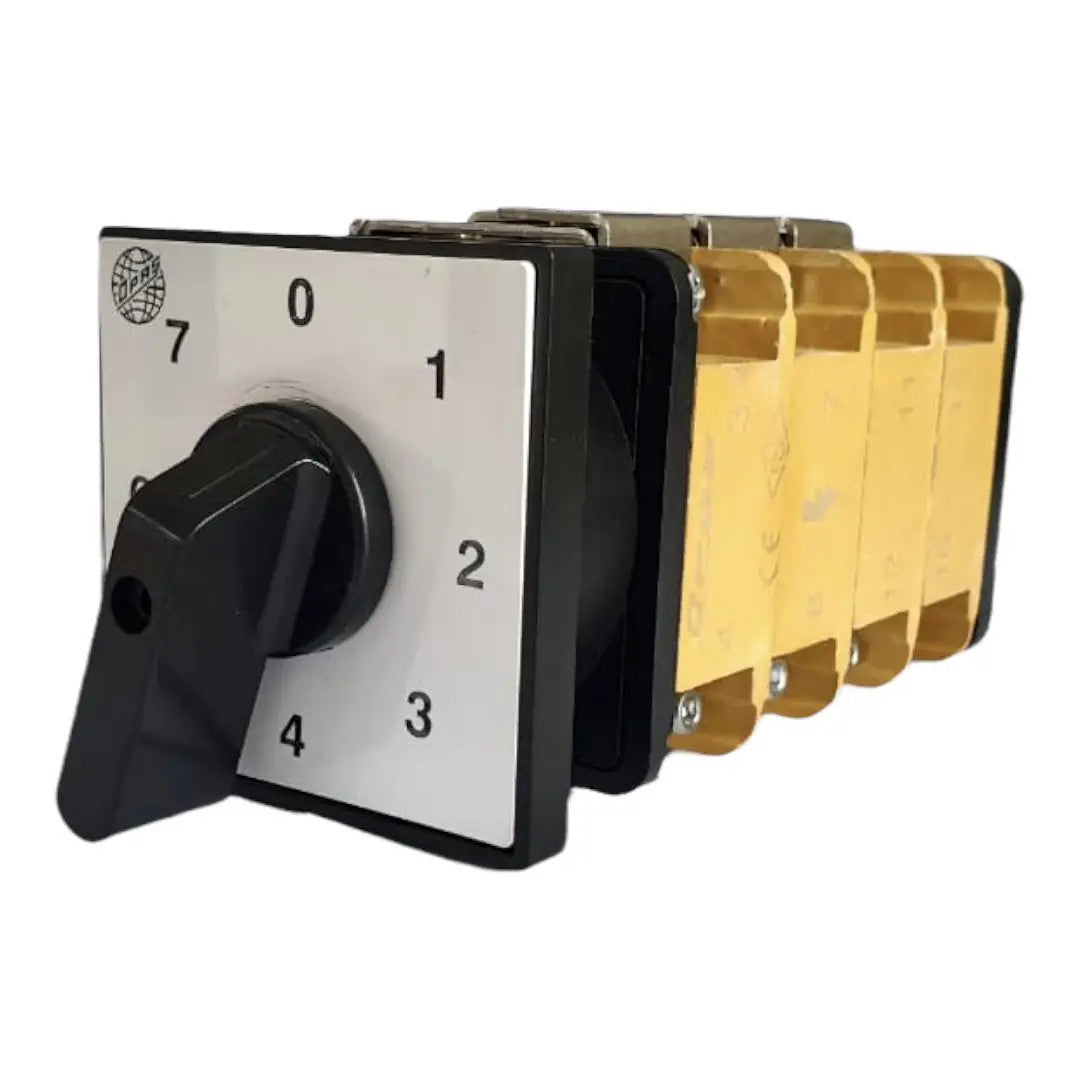

Step switch 0-1-2-3-3-4-5-6-7, rotary switch, 1 pole, 10-160A, YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

Step switch 0-1-2-3-3-4-5-6-7 can be used, for example, to turn on one of several devices/modes/steps of the processing program, etc.

Step switches are designed for manually switching low-voltage circuits. They are used to create main and control circuits, to turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size and electrical and mechanical resistance.

The multi-position scheme 0-1-2-3-4-5-6-7 is used for switching between different operating modes of the equipment (movement speed, heating temperature).

Technical specifications:

• Locking design.
• Device type: rotary switch

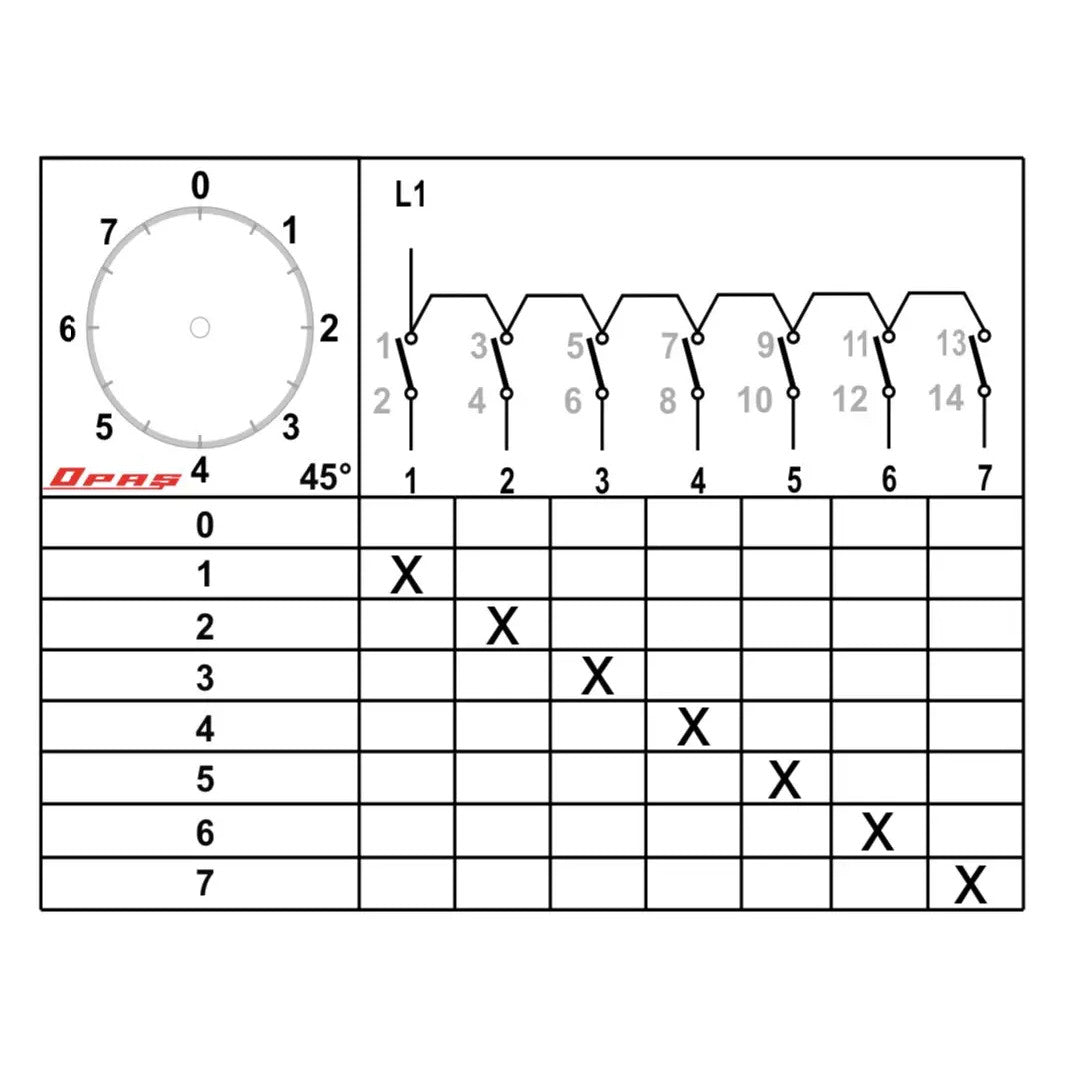

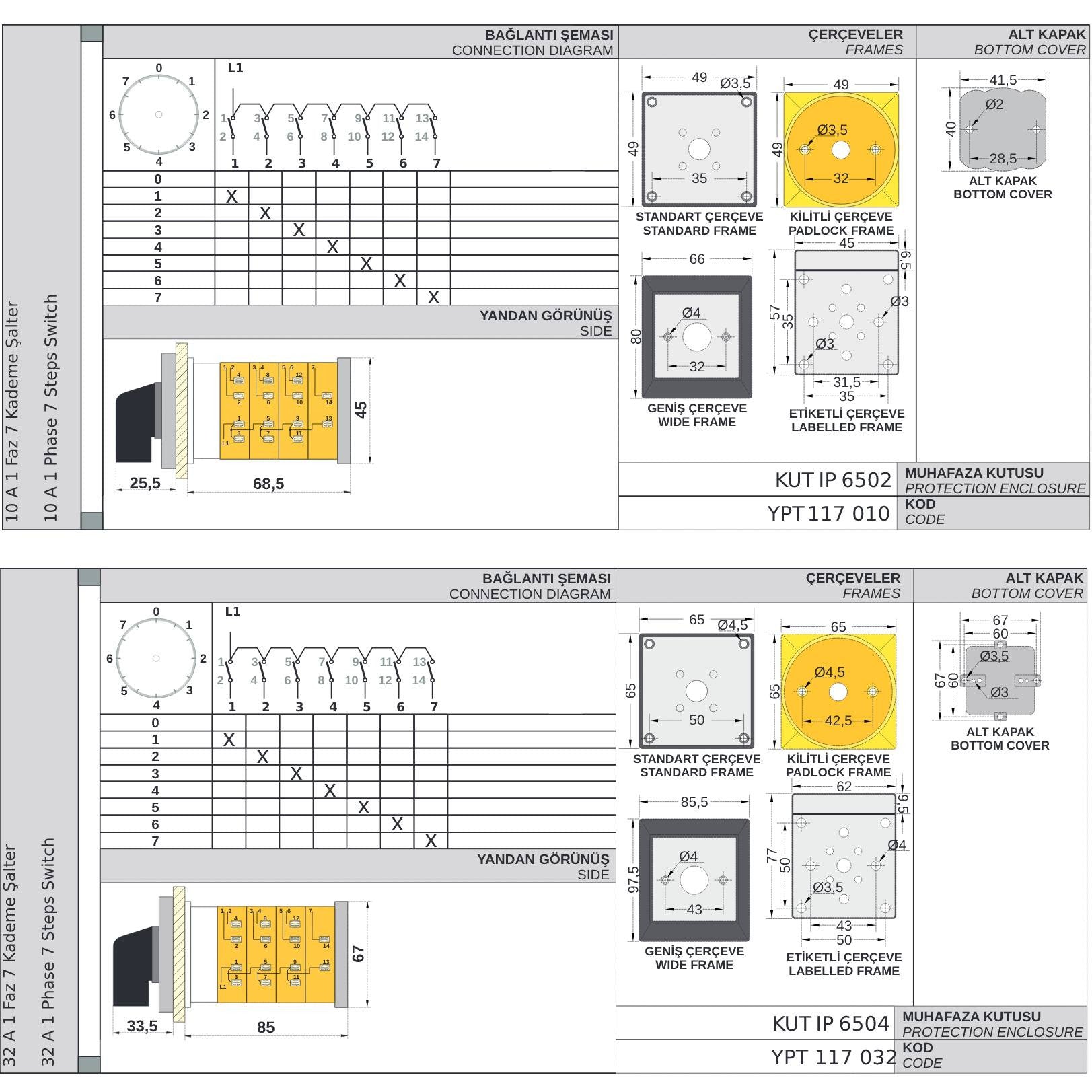

• Switching scheme: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
• Number of poles: 1
• Type: built-in
• Number of phases: single-phase
• Protection: No
• Degree of protection against dust and water: IP20
• Operating temperature range: -30 to +55 °C
• Manufacturer: M.
• Manufacturer country: Turkey
• Number of working positions: 8
