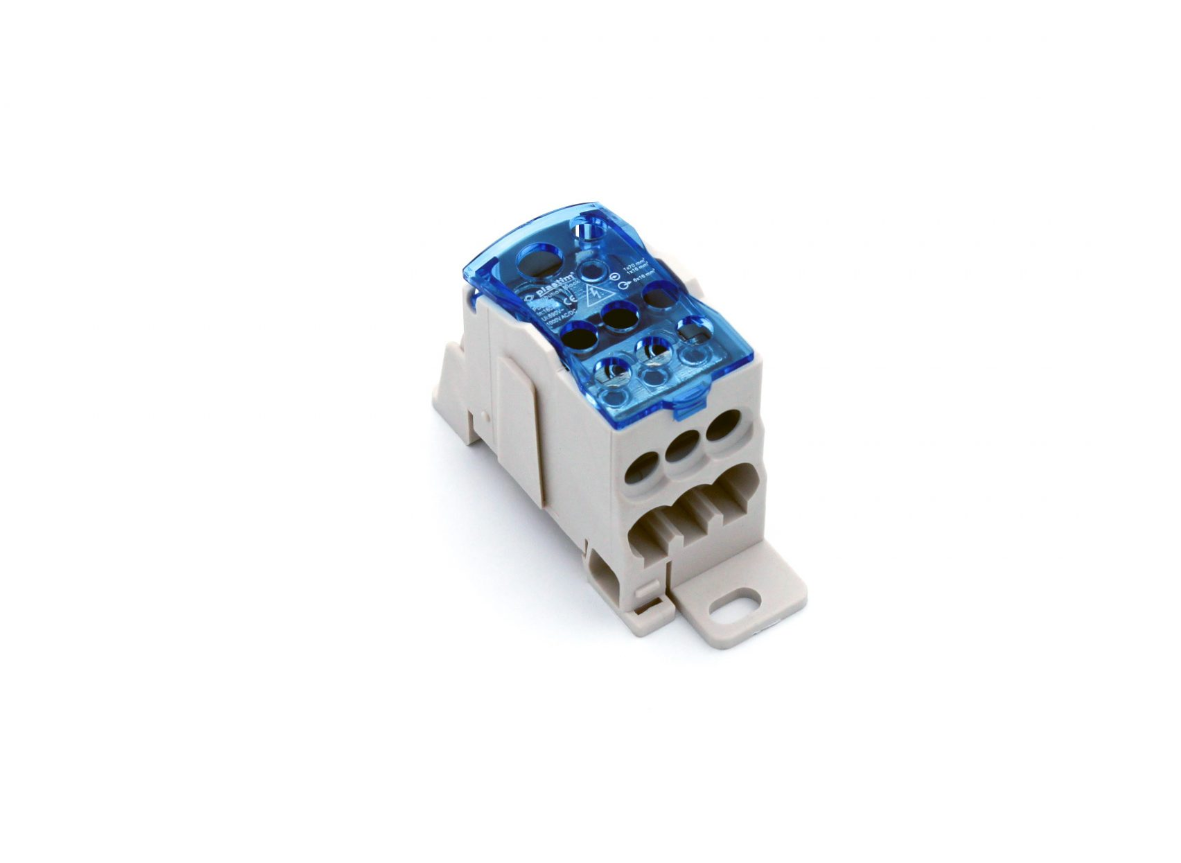

Terminal block for phase separation on DIN rail, Plastim.
The Plastim PDB 160 compact distribution block is used for safe and clear branching of phase or neutral conductors in distribution cabinets. It allows connection of one main power conductor with a large cross-section and its branching into seven output circuits. The robust brass bridge ensures perfect conductivity and low contact resistance, while the plastic cover provides protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail or for screw mounting on a mounting plate.
Technical parameters
Product type.
Rated current: 160 A
Number of inputs: 1
Number of outputs: 7 (6 standard outputs + 1 switch)
Input wire cross-section: 10 - 70 mm²
Output wire cross-section: 6 × 2.5-16 mm²
Bridge cross-section: 1× 6 - 16 mm²
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
