Phase separation terminal block PDB207
- Regular price
- €7,00 €5,74 excl. VAT
- Regular price
-
- Sale price
- €7,00 €5,74 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty

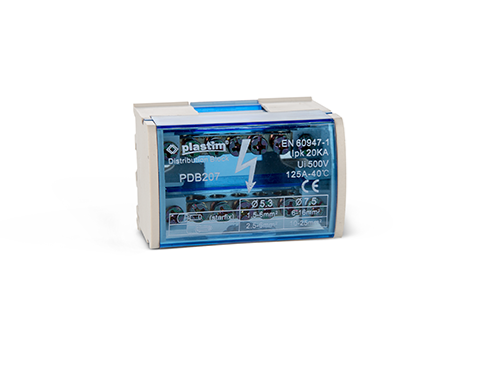

Terminal unit for phase separation on DIN rail, Plastim, made in Turkey.
The Plastim compact two-pole distribution block is used for safe and clear disconnection of phase and neutral conductors in distribution cabinets. The design includes two separately insulated busbars (2 poles), each with 7 connection points. Robust brass bridges ensure high conductivity and low contact resistance. The plastic cover provides reliable protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm mounting rail or for screw mounting on a mounting plate.
Technical specifications
Product type.
Number of poles: 2
Rated current: 125 A
Number of connections per pole: 7
Total number of connections: 14 (2 × 7)
Pole connection configuration: 5× ø 5.3 mm + 2× ø 7.5 mm
Type of connection: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Width: 65.0 mm
Depth: 45.5 mm
Height: 51.0 mm
