Phase separation terminal block PDB215
- Regular price
- €12,40 €10,16 excl. VAT
- Regular price
-
- Sale price
- €12,40 €10,16 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty

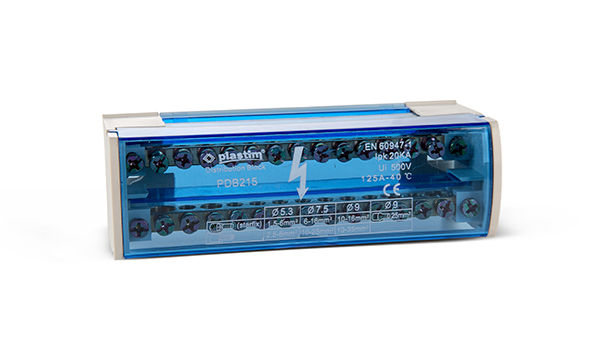

Phase separation terminal block on DIN rail, Plastim
The two-pole phase separation block Plastim is used for safe, structured, and clear branching of phase and neutral conductors in electrical distribution. It consists of two separate, galvanically isolated brass busbars (2 poles), each with 15 connection points of three different diameters for optimal combination of main supply, connection, and termination circuits. The transparent protective cover allows visual inspection of the connection status while providing reliable protection against accidental contact. The block is designed for quick mounting on a standard DIN 35 mm mounting rail or fixed mounting with screws on a mounting plate.
Technical parameters
Product type: Network block.
Number of poles: 2
Rated current: 125 A
Number of connections per pole: 15
Total number of connections: 30 (2 × 15)
Pole connection configuration: 11 × ø 5.3 mm + 2 × ø 7.5 mm + 2 × ø 9.0 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 132.0 mm
Width: 45.5 mm
Height: 51.0 mm
