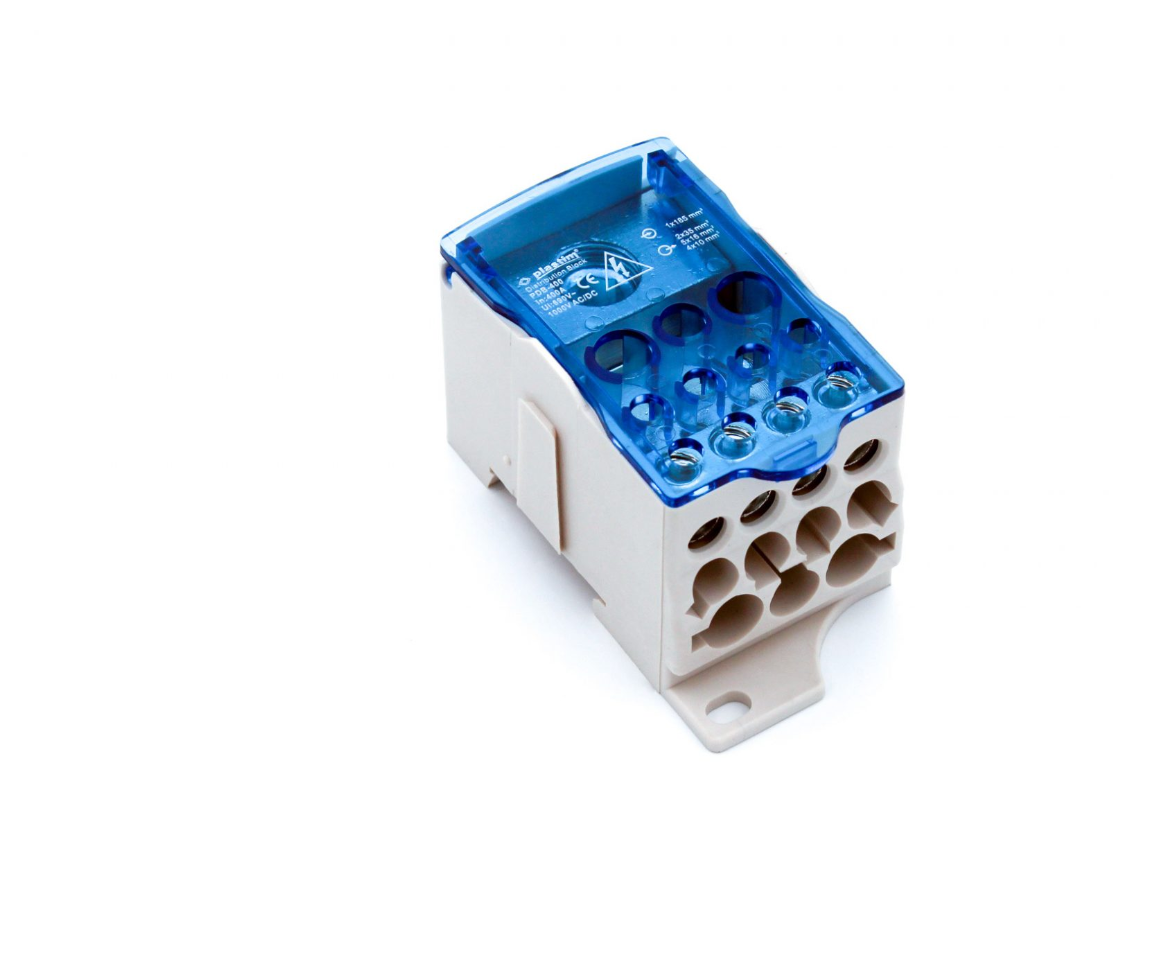

Phase separation terminal block for DIN rail, Plastim
The Plastimov high-performance distribution block is used for safe and clear distribution of phase or neutral conductors in industrial switching devices and main power supply points. This compact module allows connection of one large cross-section main power cable (up to 185 mm²) and its reliable distribution to 11 separate output branches of three different capacities. The robust construction and high-quality conductive core ensure minimal contact resistance and 100% stability under full current load of 400 A. The plastic housing provides safe installation and protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm mounting rail or for screw mounting on a mounting plate.
Technical parameters
Product type.
Rated current: 400 A
Number of inputs: 1
Number of outputs: 11
Input wire cross-section: 1 × 95 - 185 mm²
-
Output wire cross-section:
4× 2.5 - 10 mm²
5× 2.5 - 16 mm²
2× 6 - 35 mm²
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
