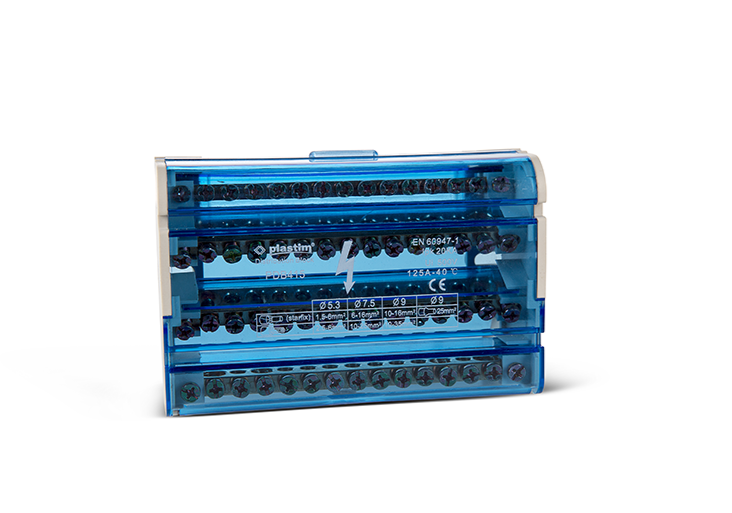

Terminalska enota za ločevanje faz na DIN-lestvici, Plastim, izdelano v Turčiji.
Štiripolni razdelilni blok Plastim se uporablja za varno, pregledno in prostorsko varčno razvejitev treh faz in nevtralnega vodnika (3P+N) v razdelilnih omaricah. Sestavljen je iz štirih ločenih, galvansko izoliranih medeninastih zbiralnic (4 pole), vsaka s 15 priključnimi točkami treh različnih premerov za optimalno kombinacijo glavnega napajanja in velikega števila priključnih vtičnic. Prozoren tečajni pokrov omogoča takojšen vizualni pregled priključkov, hkrati pa zagotavlja zanesljivo zaščito pred nenamernim dotikom. Blok je zasnovan za hitro pritrditev na standardno nosilno tirnico DIN 35 mm ali za fiksno pritrditev z vijaki na montažno ploščo.
Tehnični parametri
Vrsta izdelka.
Število polov: 4 (primerno za trifazna omrežja z ničelnim vodnikom)
Nazivni tok: 125 A
Število priključkov na pol: 15
Skupno število priključkov: 60 (4 × 15)
Konfiguracija priključkov na pol: 9× ø 5,3 mm + 2× ø 7,5 mm + 2× ø 9,0 mm
Vrsta priključka: vijačni priključek
Način pritrditve: DIN 35 mm montažna letev / montažna plošča
Dimenzije
Dolžina: 132,0 mm
Širina: 89,5 mm
Višina: 51,0 mm
