Transparent wire connector Push-in 6x2.5 mm²
- Regular price
- €0,48 €0,39 excl. VAT
- Regular price
-
- Sale price
- €0,48 €0,39 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Translation missing: en.products.product.preorder_product.heading
- Description
- Payment methods
- Warranty
Transparent Push-in box for 6 wires, ONKA
ONKA's compact push-in screwless connectors allow quick, safe, and reliable connection of up to six solid copper conductors with a cross-section of up to 2.5 mm² without the use of tools. The fully transparent housing provides immediate visual verification of correct wire insertion. The clamp has a built-in test opening for safe measurement of network parameters. Its very low profile, with a height of only 9.5 mm, saves valuable space in cable cabinets.
Technical parameters
Type of product.
Connection technology.
Number of poles (number of connection points): 6
Maximum wire cross-section: 2.5 mm²
Housing color: transparent
Type of conductor: Solid conductor (wire)

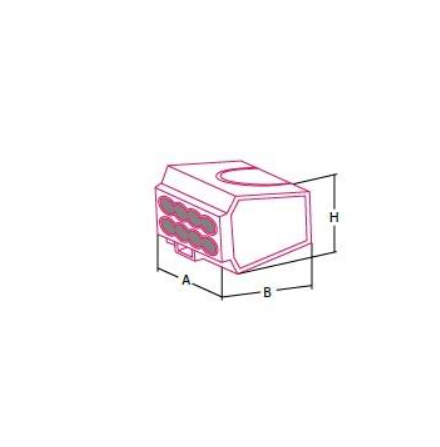

Dimensions
Dimension A (width): 22.0 mm
Dimension B (depth): 19.7 mm
Dimension H (height): 9.5 mm
