3-phase network parameters analyzer

3-phase network analyzer / network analyzer / network parameter meter - multifunctional digital panel meter, indicator of current, voltage, frequency, and total power, with two relay outputs and a digital input, RS485 ModBus RTU - manufacturer TPM-01ESH TENSE (Turkey)

The multifunctional electrical network analyzer is intended for precise measurement of three-phase network parameters

Power analyzers are designed for measuring and monitoring electrical values. With the communication function, it is possible to independently monitor and report energy measurements

Main advantages:

• RS485 Modbus RTU (1200-38400b/s)
• 3-phase voltage transformer and 3-phase current transformer.

• Displays voltage and current harmonics up to the 31st harmonic

• Displays active power per phase (P)

• Displays reactive power per phase (Q, inductive and capacitive)

• Displays apparent power in phase (S)

• Displays Cosφ values and power factor for each phase

• Displays phase-to-neutral voltage values, phase-to-phase voltages (V) and current (I) of each phase, frequency measurement

• Displays total values of active energy import and export (ΣkWh)

• Displays total values of inductive and capacitive reactive power (ΣkVArh)

• Displays minimum and maximum values, maximum demand

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current imbalance, THD-I)

• The menu is password protected.

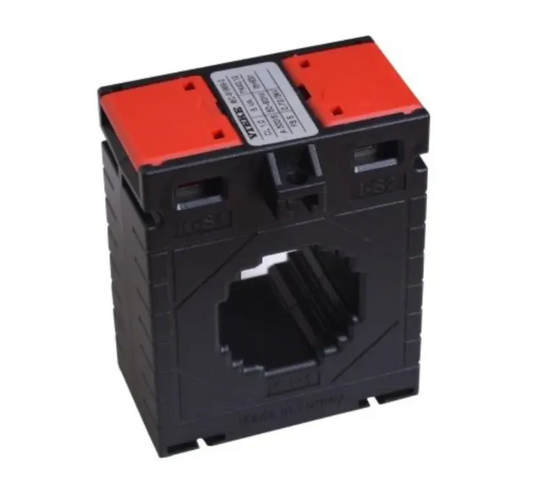

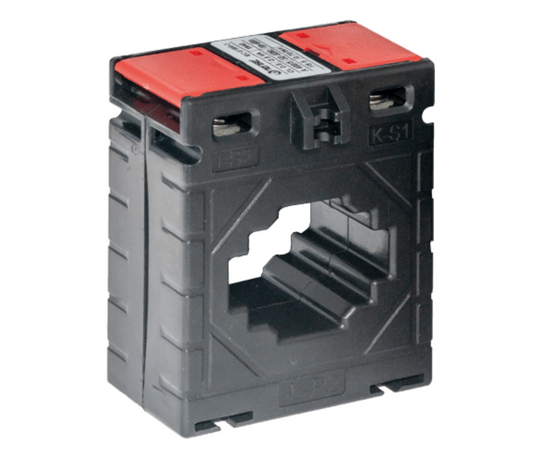

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. Such transformers can be purchased in our online store. If you connect the analyzer to ModBus, we will send you the registration table with ModBus addresses upon request.
